PS4 Tensilica DPU? ( Dataplane Processor Unit)

Looking at some slides from the PS4 HSA Audio Presentation from AMD APU 13 I noticed that the processor used in the presentation is a Cadence/Tensilica DPU.

here is a link to Cadence website if you would like to read up on their DPU's

What's a DPU?

Amazing Xbox One Kinect Depth Capturing demo from Hotchips 2013 presentation.

Xbox One Kinect Depth capturing data looks amazing underneath it all. check out the demo from Hotchips 2013 the demo starts around the 1:06:00 mark.




Sony patent for detecting & avoiding obstacles when playing Virtual Reality games wearing a Head Mounted Display.

New Sony patent to keep VR gamers self in the real world by detecting obstacles in your surroundings & replacing them with objects in the virtual world to keep you from running into them.


OBSTACLE AVOIDANCE APPARATUS AND OBSTACLE AVOIDANCE METHOD

Abstract "An obstacle detecting unit detects an obstacle for a user wearing a head mounted display from an image of the outside world. A distance calculating unit calculates the distance from a detected obstacle to the user wearing the head mounted display. An obstacle replacing unit replaces the detected obstacle with a virtual object. A virtual object synthesizing unit generates a virtual object at a position within a virtual space displayed on the head mounted display, in which the position is determined according to the distance to the obstacle."

Crazy Sony Patent: Motion sensing cameras for your hands & feet tracking your moves on the dance floor.

Crazy new Sony patent for tracking your dance moves using motion sensing cameras that attach to your hands & feet sensing your every move with the help of the patterns on a dance mat.

" BACKGROUND OF THE INVENTION

Video games have become a very popular form of entertainment. A typical video game utilizes an interface or controller to receive inputs from a user. A common type of controller is a hand-held controller that uses pushbuttons or joysticks to provide inputs. Another type of controller, commonly referred to as a "dance pad" is used with games based on dance. In a typical dance-based game a user is prompted to press selected buttons on the dance pad at specific times in response to some sort of visual indicator displayed on a video screen. In the dance pad, the control buttons are typically integrated into a plastic mat. The user can press different control buttons by stepping or dancing on corresponding areas of the mat. "

PlayStation 4 Launch Day Madness! ( Videos )

EXCLUSIVE: Lichdom Demo featuring AMD TrueAudio

PlayStation 4 CPU using AMD Turbo Core to go from 1.6GHz up to 2.75Ghz ?

For awhile there has been speculations about the 2.75GHz clock rate that showed up in the  PS4 FCC Certification. Some speculated that it was just the clock rate of the Memory but today in a IGN  PS4 review video the 2.75GHz clock rate has been shown to be the highest clock rate of the CPU with 1.6GHz being the base clock rate.

If you're wondering what's this all about I'll like to point you to AMD Turbo Core technology which push the clock rate up while using less cores to get the best performance out of the CPU when there is tasks that are better suited for higher clock rates but less cores.

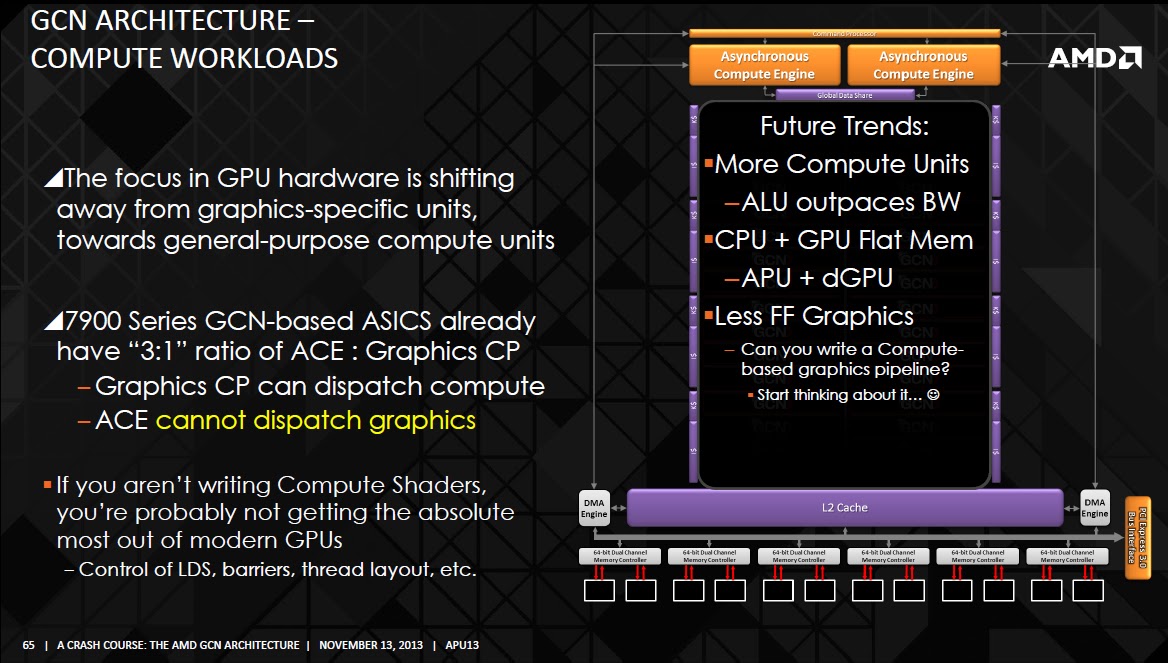

Compute is the Future for GPGPU & Graphics (AMD)

From the GCN presentation at APU13

PlayStation 4 & Mantle to drive the future of Dice Frostbite Engine

Register to watch ' Inside PlayStation 4: Building the Best Place to Play' now at AMD APU13

Starting at 11:30AM EST

https://vts.inxpo.com/scripts/Server.nxp?LASCmd=AI:4;F:QS!10100&ShowKey=16356&GroupID=MOBILEBROWSER&Referrer=https%3A%2F%2Fvts.inxpo.com%2Fscripts%2FServer.nxp%3FLASCmd%3DL%3A0%26AI%3D1%26InitialDisplay%3D1%26ClientBrowser%3D0%26ShowKey%3D16356

Killzone Shadow Fall - PlayStation 4 Tech video: Ray Traced Reflections ,Physically Based Lighting & More

Black Friday 2013 Deals , Wal-Mart , GameStop & More

Edit: here is the link to all the Black Friday deals in one place http://blackfriday.com/

Xbox One All-in-One 12 minute Video Demo

Sony's Virtual Reality Head Mountable Display system Patent.

New Sony Head Mountable  Display system Patent appears online for what is sure to be the rumored PlayStation 4 Oculus Rift rival.   The HMD will also use the PlayStation 4 Eye for Augmented Reality & motion tracking.

You can check out the patent drawing below.

"HEAD MOUNTABLE DISPLAY SYSTEM

Abstract A head-mountable display system comprises a head mountable display having a frame to be mounted onto an observer's head, the frame defining one or two eye display positions which, in use, are positioned for viewing by the observer. The frame comprises one or more shutters for obscuring the observer's view of the surrounding real environment and a display element mounted with respect to each of the eye display positions. The display element provides a virtual image of a video display of a video signal from a video signal source to the observer. An object detector detects the presence of an object within a detection range of the observer's head. And a controller controls operation of the head mountable display so as to allow the observer to view at least a portion of the surrounding real environment in response to detection of the presence of an object within the detection range.

---

Inventors:	Benson; Simon Mark; (London, GB) ; Bickerstaff; Ian Henry; (London, GB)
Assignee:	SONY COMPUTER ENTERTAINMENT EUROPE LIMITED London GB
Filed:	May 3, 2013 "

HEAD MOUNTABLE DISPLAY SYSTEM

Gears of War coming to PS4? Mark Rein hints at Gears of War PlayStation 4?

@amboyes @yosp you guys should play some Gears of War!

— Mark Rein (@MarkRein) November 7, 2013

PS4 PS Eye broadcasting while gameplay streaming

PlayStation 4 'System Architect' Mark Cerny answer your questions. ( video )

PlayStation 4 Main Processor features a custom AMD x86-64 CPU & Next-Generation Radeon GPU

New PS4 Hardware Features video from SONY reveals that the PS4 Main Processor will be made up of a custom AMD x86-64 CPU & Next-Generation Radeon GPU.

You might be thinking no big deal we already knew what CPU & GPU is inside of the PS4 but that's not the case because before the CPU was thought to be made up of plain AMD Jaguar Cores but the new video reveals that the CPU is custom & the GPU is said to be a Next-Generation Radeon GPU, this could mean that it's from AMD next family of  GPU's featuring GCN 2.0 much like what's rumored to be part of Kaveri APU's.

Source: PS4 Features Trailer

Microsoft "Deliver Hardware Accelerated Applications Using RemoteFX vGPU with Windows Server" Nov 12th at AMD APU13

Tues

2:45 – 3:30

CC-4006

Derrick Isoka, Olof Mases

Microsoft

Deliver Hardware Accelerated Applications Using RemoteFX vGPU with Windows Server

Source: AMD

http://developer.amd.com/apu/home/agenda-sessions/

SONY to reveal The PS4 Processor November 13th at AMD APU13 "Inside PlayStation 4: Building the Best Place to Play"

Sony to unveil the PS4's never seen before SoC at APU 13

• 8:30 - 9:30 a.m. (PST), Wednesday, November 13:
 Dominic Mallinson, senior vice president, Software, Sony: "Inside PlayStation 4: Building the Best Place to Play"

Source Tech Powerup.com

http://www.techpowerup.com/193616/amd-to-unveil-next-generation-apus-on-november-11.html

Image of SoC below is not actually the PS4 SoC but gives you a look at what it could look like & what secrets could be unveiled come November 13th.

SONY bringing back the PocketStation

HSA ( Heterogeneous System Architecture ) Explained in new videos from AMD

Kinect sign language translation video

AI Co-Processors in Consoles & PC's might be the best thing to happen to gaming since the GPU. ( AMD HSA )

One of the best things about HSA is that hardware makers will be able to add Fixed Function Accelerators to the SoC  for better performance of special tasks without putting too much work on the CPU & GPU.

One thing  that could really need a boost is AI  (Artificial Intelligence ) but by the looks of things we might finally get something that hardcore gamers have been wanting for years, better AI thinks to AI Co-Processors.

PlayStation 4 review event & the secret reason why no one can do reviews on the console until November 11th ( AMD HSA APU?)

Notice that Sony is yet to show off it's new chip? very un Sony like because we all know that Sony love to show off it's technology.

The answer is AMD hasn't showed off it's new HSA APU  Kaveri yet & the PS4 APU share a lot of the common features of Kaveri APU & will show off the Heterogeneous System Architecture before AMD unveil  the HSA APU at the Developer Summit APU13 on November 11th.

Battlefield 4 900p on PS4 , Call Of Duty: Ghost has framerate issues on PS4 & Xbox One ( Rumors )

Thuway of Neogaf has just released this information on Neogaf  he is a known insider just in case you didn't know this already,  I have been sitting on this info for about 3 months now but was asked not to say anything about it so I just kept it to myself.


"Battlefield 4 on PS4 is 900p on PS4. So speculation could be rampant, but this is where they are at now.Also COD Ghosts has framerate issues to be ironed out by launch. Both machines. One more bit of information, but working on getting another source for that will be nigh impossible, I have informed Kagari about it."

Rumor: Call of Duty Ghost only 720P on Xbox One vs 1080P on PS4

From a trusted source Thuway from NeoGaf

thuway

The Bird speaks the truth

(Today, 10:34 PM)

Quote

720p 720p 720p 720p 720p 720p 720p 720p 720p 720p MS dun goofed :/


720p 720p 720p 720p 720p 720p 720p 720p 720p 720p

MS dun goofed :/

SharpDX replacing Microsoft XNA & bringing cross platform games to Xbox One , Windows 8 & Windows Phone?

  The

 http://sharpdx.org/

power of Direct for .NET

SharpDX is an open-source project delivering the full DirectX API under the .Net platform, allowing the development of high performance game, 2D and 3D graphics rendering as well as realtime sound application.

SharpDX is built with a custom tool called SharpGen able to generate automatically a .NET API directly from the DirectX SDKheaders, thus allowing a tight mapping with the native API while taking advantages of the great strength of the .Net ecosystem.

SharpDX is fully supporting all Windows platforms including latest Windows 8 Metro and Windows Phone 8. Easily develop multimedia applications for desktop, WinRT and Windows Phone with the same API!

SharpDX needs your vote for .NET on Xbox One!

July 26, 2013

Yesterday was announced that Xbox One will allow indie developers to easily publish games on Xbox One.

We have still very few details about the indie developer program on this platform, but in order to use SharpDX and have full DirectX access on this platform, we need to ensure that .NET will be accessible on this platform.

If you would like to be able to develop cross-platform games with .NET on all Windows Platforms including the Xbox One, please vote for this user voice feature request:Allow .NET games on Xbox One

This will allow SharpDX to provide a compelling game development alternative on Xbox One!

Thanks!
The SharpDX Team

MonoGame Framework is coming to PlayStation 4

MonoGame for PlayStation 4 in the works



http://www.monogame.net/news/2013/10/14/monogame-playstation-4-works

" For the past 4 years, little by little the MonoGame team has grown. We've added various platforms and had lots of games released using MonoGame.
 Today is another major milestone.
The MonoGame team is very proud to announce that a MonoGame port for PlayStation 4 is under-way.
We are porting MonoGame to the PS4 using Xamarin's fully featured Mono for PS4 port (available through Sony's Console Developer Programme to approved developers).
The MonoGame project and the whole team are ecstatic about the possibilities of bringing MonoGame to consoles.
This port of MonoGame for PS4, is being spearheaded by Tom Spilman, from SickheadGames. Tom and Sickhead were responsible for the Windows 8 port of MonoGame.
It is early days, but the initial work looks very promising. "



http://en.wikipedia.org/wiki/MonoGame

PS4 releasing without the most important part of PlayStation Consoles 'The Vector Co-processor' ? I don't think so!

PS1 had  "A Vector Unit called the "Geometry Transformation Engine," built inside the CPU."

PS2 had  Vector Units: VU0 and VU1
VU0 2.44 GFLOPS
VU1 3.08 GFLOPS (with Internal 0.64 GFLOPS EFU)

PS3 had the SPE's

" In 2000, IBM, Toshiba and Sony collaborated to create the Cell processor, consisting of one scalar processor and eight vector processors, which found use in the Sony PlayStation 3 among other applications."

that was 25.6 GFLOPS each 6 = 153.6 GFLOPS of vector processing from the SPEs (not counting the 7th SPE that was used for the OS)

PS4 = ???   only the Jaguar Cores  & GPGPU Compute?  maybe but this just doesn't fit with all the other PlayStation Home Consoles  so I'm holding out hope that their is a Vector Co-Processor in the PS4.

PlayStation Europe shuts down false PS4 Backwards Compatibility claims by Game.

@yosp @GAMEBasildon Hi guys, this isn't true. We can say that officially.
— PlayStation Europe (@PlayStationEU) October 18, 2013

Rumor: All PS3 digital content to carry over to PS4 ( Proof that Vector Co-Processor is real? )

Update: it was false!

@yosp @GAMEBasildon Hi guys, this isn't true. We can say that officially.
— PlayStation Europe (@PlayStationEU) October 18, 2013

--------------------------------------------------------------------------------------------------------

Fantastic PlayStation meeting! Breaking Point - ALL your digital content from your PS3 WILL carry over on to your PS4! @yosp
— GAME Basildon (@GAMEBasildon) October 18, 2013

Breaking News from Game this morning is that PS3 games will carry over to the PS4.

This news has a lot of people wondering how is this possible when the PS4 doesn't have The Cell Processor for Backwards Compatibility & the Jaguar CPU cores are so weak?

The answer that I have come up with is that the Vector Co- Processor that I have been hinting at from time to time that no one else is talking about is real & it's able to emulate the SPE's of the Cell Processor so playing PS3 games on the PS4 can be a reality.

Another thought is that the SPE's are being emulated in compute.

PlayStation 4 & AMD Radeon R9 290X GPU share the same 8 ACE ( Asynchronous Compute Engines )

Newly leaked slides from AMD's new Radeon R9 290X Hawaii GPU  reveals that the Volcanic Islands GPU will also feature 8 Asynchronous Compute Engines much like the Liverpool GPU inside of Sony's new PS4.

Each of the 8 ACE's can manage up to 8 compute queues for a total of 64 compute commands, in comparison the HD 7970 only has 2 ACE's that could only queue 2 compute commands for a total of 4 & the Xbox One only has 2 ACE's but they also manage up to 8 compute queues for a total of 16 compute queues.

Could this mean that the PS4's GPU is also a part of  AMD's Volcanic Islands family?

Below is a diagram of the PlayStation 4 Compute, Queues and Pipelines from VGleaks

From VGLeaks

"PS4 GPU has a total of 2 rings and 64 queues on 10 pipelines

- Graphics (GFX) ring and pipeline

• Same as R10xx
• Graphics and compute
• For game

- High Priority Graphics (HP3D) ring and pipeline

• New for Liverpool
• Same as GFX pipeline except no compute capabilities
• For exclusive use by VShell

- 8 Compute-only pipelines

• Each pipeline has 8 queues of a total of 64
• Replaces the 2 compute-only queues and pipelines on R10XX
• Can be used by both game and VShell (likely assign on a pipeline basis, 1 for VShell, and 7 for game)
• Queues can be allocated by game system or by middleware type
• Allows rendering and compute loads to be processed in parallel
• Liverpool compute-only pipelines do not have Constant Update Engines (presented in R10XX cards) "

AMD HSA ARCHITECTURE : Could we be looking at the PlayStation 4 SoC & not even know it? ( Fixed Function Accelerator & DPS )

You all might remember a interview with Sony's CTO last year where he talked about the future of PlayStation & he described the PS4 Chip as being a chip with most of the processing still being done by the CPU & GPU but also being helped out by DSP's & Programmable Logic

“It took five years before we saw games that used the full power of Cell, so we are used to looking ahead and having capacity,” Tsuruta says. “We are looking at an architecture where the bulk of processing will still sit on the main board, with CPU and graphics added to by more digital signal processing and some configurable logic.”

Fast forward  to today & we have a SoC pictured in AMD's Next Generation APU (Kaveri ) & HSA presentation.

This SoC shown in the documents fit the description having a DSP & 'Fixed Function Accelerator'  which could be the Vector Processor\ Compute Modular  that some people have reported to have seen but we haven't heard much about it.


From EuroGamer

 "However, there's a fair amount of "secret sauce" in Orbis and we can disclose details on one of the more interesting additions. Paired up with the eight AMD cores, we find a bespoke GPU-like "Compute" module, designed to ease the burden on certain operations - physics calculations are a good example of traditional CPU work that are often hived off to GPU cores. We're assured that this is bespoke hardware that is not a part of the main graphics pipeline but we remain rather mystified by its standalone inclusion, bearing in mind Compute functions could be run off the main graphics cores and that devs could have the option to utilise that power for additional graphical grunt, if they so chose."



From a trusted member on Ars Technica forums

So, a couple of random things I've learned: -It's not stock x86; there are eight very wide vector engines and some other changes. It's not going to be completely trivial to retarget to it, but it should shut up the morons who were hyperventilating at "OMG! 1.6 JIGGAHURTZ!". -The memory structure is unified, but weird; it's not like the GPU can just grab arbitrary memory like some people were thinking (rather, it can, but it's slow). They're incorporating another type of shader that can basically read from a ring buffer (supplied in a streaming fashion by the CPU) and write to an output buffer. I don't have all the details, but it seems interesting. -As near as I'm aware, there's no OpenGL or GLES support on it at all; it's a lower-level library at present. I expect (no proof) this will change because I expect that they'll be trying to make a play for indie games, much as I'm pretty sure Microsoft will be, and trying to get indie developers to go turbo-nerd on low-level GPU programming does not strike me as a winner.

From this person ?

Originally Posted by JonathanCarabalo

The PS4's world-famous Vector co-processor

A truly innovative feature - the Playstation 4's world-famous vector co-processor. It's connected to a CPU core. It doesn't look like much on paper:

• 100 million transistors
• 300 mhz
• $25 to produce
• 25 nm production process
• 16-way SIMD floating-point multiply-add instructions (512-bit)
• 1024-bit load-store instructions
• 512 Kbytes local memory
• L2 cache of the X86 CPU
• Write-to-memory feature - bypassing the CPU
• Has a connection to the instruction dispatch of a regular x86 Jaguar core

It doesn't look like much, except for the 16-way multiply-adder! Besides that though - it only costs $25.00. "How can $25.00 worth of CPU logic improve the graphics pipeline?" Thus - top-secret alien technology. The world-famous vector co-processor. With it - developers can pull off pretty amazing effects, in real-time. I've already seen:

Full-screen per-pixel lighting! Pretty amazing - I haven't seen any games do that.
Extremely realistic fire effects
Extremely realistic ice simulation
Massive degrees of normal/displacement mapping
And this is just the start.


_______________________________________________________________________

Originally Posted by JonathanCarabalo

SIMD Vector Processor Comparison

Playstation 3 - Cell

• Developed by IBM, Sony, and Toshiba - mostly IBM, at Austin Texas
• Based on the Power4 architecture, the PowerPC 970 main core
• 7, 128-bit Floating point multiply-adders
• 256 Kbyte local memory for each SPU
• 1 PowerPC 970-based main core
• 512 Kbytes L2 cache connected to the 7 SPUs via a Token-Ring bus - which they used to inter-communicate as well
• 200 GB/s EIB L2 cache bandwidth
• 3.2 ghz clockrate
• 230 million transistors
• $400 million to develop, $100 to produce
• 4-way SIMD

Playstation 4 - Vector Co-Processor

• Developed by AMD and me (just a joke)
• Based on the X86 architecture
• 1, 512-bit floating point multiply-adder
• 1.6 ghz clock rate
• 512 Kbyte local buffer + the CPU core's main buffer
• Connected to the bus directly via a bus-interface unit, and to a CPU core
• About 300 million transistors
• $0 to develop, $80 to produce
• 307.2 GB/s buffer to execution unit
• 16-way SIMD
• 8 X86-based cores, each with 128-bit FP unit, L2 cache, and shared local memory between pairs of CPUs and between all 8

Doesn't seem as powerful as Cell does it? In fact - it's way, way more powerful. I just found this an interesting comparison. This design is more powerful - as the CPUs do not require direct developer intervention to get them to perform, as opposed to Cell, which only worked if the developers specifically coded for it.

16-way SIMD makes it 4 times faster, per clock. I.e. to do 16 FP multiply-adds, it takes 8 cycles. 4 load-stores, followed by 4 multiply adds - the Cell. But for the Vector Co-Processor to do 16 FP mulitply-adds, it takes 1 cycles. The Out-of-Order, 512-bit load-stores load the data, while the Vector Co-Processor is performing the data. Thus - the Vector Co-Processor alone is equal to 8 SPUs.






& from this person

The PS4 specter vector? I'm not a 100% sure what it is at this stage... I'm 45% leaning towards physics offloading or helping out within that department. The other 55% is screaming a modified component for helping PS3 games work within the G/Cloud environment.

And as you can see The SoC in the picture above is not Kaveri.

Last Minute Wild PlayStation 4 Speculations because I'm bored ( don't believe it no matter how believable I make it sound )

Ok the 1st one is just a rumor I heard plus a lot of putting 2 & 2 together & getting 39 or something like that.



PS4 will come with  a 500GB SSHD with 8 or 16GB of Flash on it.

I can back this up with a few old links that didn't have the full picture when they was leaked.

1st  we shave VGLeaks -
Internal mass storage

• One SKU at launch: 500 GB HDD
• There may also be a Flash drive SKU in the future

2nd  link is the old PS4 leak that 1st gave us the APU code name Liverpool & some other info that was right

PS4 will have a special place for patches, OS etc this is stored on an internal 16 GB of flash storage.

So connecting these leaks & rumors together I say PS4 is coming with a SSHD with 8GB of Flash for the OS & patches.

maybe the Seagate ST500LM00 it's only $79 at Newegg with 8GB of NAND.

Seagate Solid State Hybrid ST500LM000 500GB 64MB Cache 2.5" SATA 6.0Gb/s Laptop Thin Hard Drive -Bare Drive

____________________________________________________

Now for the crazy speculations that I'm pretty much making up my self from my own speculations

PS4 APU might have a powerful Vector Unit on board as it's 'Fixed Function Accelerator'  there has been a few hints of a vector co-processor but nothing solid but so it's still just wild speculations & wishful thinking from me.

Xbox One Unboxing & Close-up of Xbox One Controller & headset

XBOX ONE UNBOXING-1080p by dm_5251ebdc16985
Xbox one controller close up and headset by dm_5251ebdc16985

PS4 & AMD Kaveri APU both feature the Onion + HSA memory Bus (PlayStation 4 )

AMD new Kaveri APU features the same Onion+ Bus found in the PlayStation 4.

So it's pretty safe to say PlayStation 4 APU is Heterogeneous System Architecture.

PS4 Liverpool APU Memory Bus

Kaveri HSA Architecture

GDDR5 is shown in the Memory Hierarchy slide.
